All new Bluetooth V2.1 Class 1 SPP RS-232 adapter with External antenna (Female DB9)
Model: S2B2232FEV2

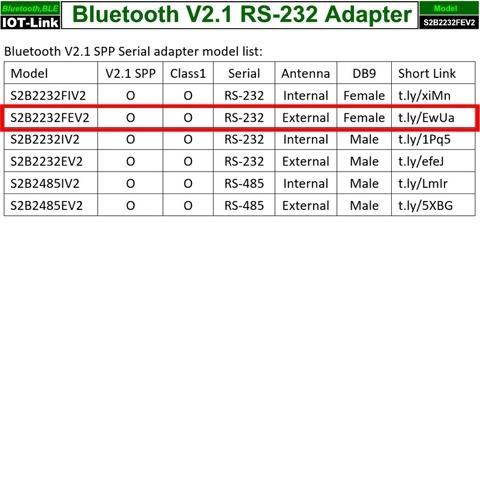

The function for the model is the same as BT-232B, S2B2232I, S2B2232IV2, S2B2232EV2
Bluetooth RS-232 Adapter for cable replacements applications, Wireless Serial Port Converter, Bluetooth RS232
(Model: S2B2232FEV2)
Bluetooth RS232, Bluetooth RS-232, Bluetooth to serial, Serial to Bluetooth, Wireless to serial, Serial to wireless
Specifications:
1. Baud Rate: Supports 1.2/2.4/4.8/9.6/19.2/38.4/57.6/115.2/230.4 Kbps
2. Coverage: Up to 100 m (open space, depend on the environment)
3. Connection: Point-to-point (pico net)

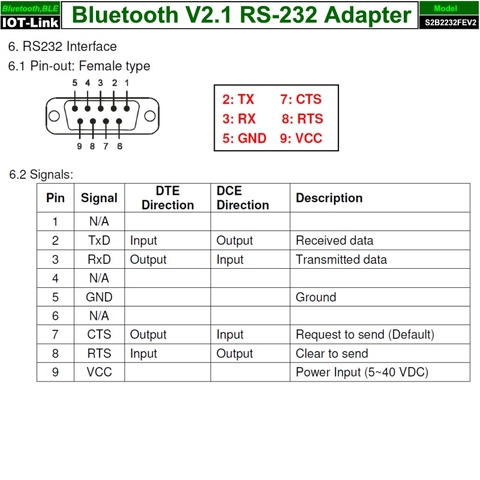

4. Signal: TxD, RxD, GND, CTS/RTS (Female)
5. RS-232 Interface: D_SUB 9-pin female
6. Standard: Bluetooth specification version 2.1+EDR
7. Profiles: Serial Port Profile (SPP), SSP
8. Data Bit: 5,6,7, 8 bits
9. Frequency: 2.400 to 2.4835 GHz
10. Hopping: 1,600/sec, 1MHz channel space
11. Modulation: GFSK-1 Mbps, DQPSK-2 Mbps, and 8-DPSK-3 Mbps
12. Tx. Power: Max. 12 dBm
13. Rx. Sensitivity: -86 dBm typical

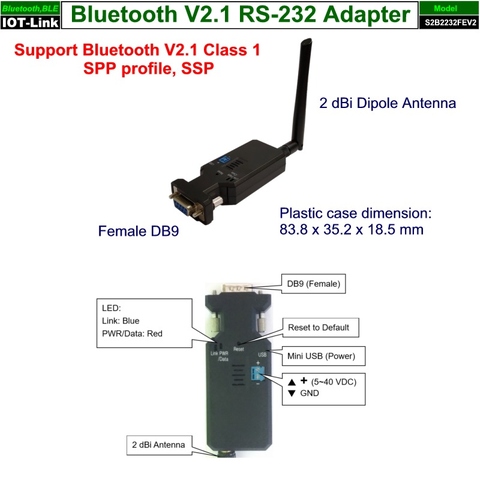

14. External Dipole 2dBi antenna
15. Antenna Gain: max. 2 dBi
16. Power Supply: 5 to 40 VDC
17. Current Consumption: Max. 90 mA
18. Operation Temperature: -20 to +75 Centigrade Degrees
19. Dimensions: 90 mm (L) x 35 mm (W) x 18 mm (H)
20. External Antenna length: 88mm w/o the folderable SMA connector (20mm)
Remark: All contents are subject to change without notice.
Package Contents:
1. Bluetooth V2.1 RS-232 Adapter x 1 pc
2. Mini USB power cable x 1 pc
3. User manual x 1 pc
