1. WiFi 802.11 AH (HaLow):
- ARM® Cortex-M3 for IEEE 802.11ah WLAN and application
- Supports 1/2/4 MHz channel with optional SGI
- Low supply current: RX 15mA @ 3.3V, TX 190mA @ 3.3V (+15 dBm Pout)
- Frequency band: 750 ~ 950 MHz
- Flow control: none
- Modulation bandwidth: 1/2/4 MHz
- RX noise figure < 6dB
- RX gain range: > 100dB
- TX gain range: > 30 dB
- Antenna Gain: 2.0 dBi
- Storage Temperature: -40~+125 ˚C
- Operation Temperature: -40~+85 ˚C
2. Ethernet:
- Supports Hardwired TCP/IP Protocols : TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
- 10BaseT/100BaseTX Ethernet PHY embedded
- Supports Auto Negotiation (Full and half duplex, 10 and 100-based )
- Not supports IP Fragmentation
- Supports Power down mode
- Supports Wake on LAN over UDP
- LED outputs (Link, Active)
- Storage Temperature: -65~+150 ˚C
- Operation Temperature: -40~+85 ˚C
3. Antenna:
- Options: 902 ~ 928 MHz or 865.5~868 MHz
- Peak Gain: 2.0 dBi (902 ~ 928 MHz) or 1.65 dBi (865.5~868 MHz)
- Length: 196 mm (unbent)
- SMA type: Male Reverse
- Storage Temperature: -40~+65 ˚C
- Operation Temperature: -40~+80 ˚C

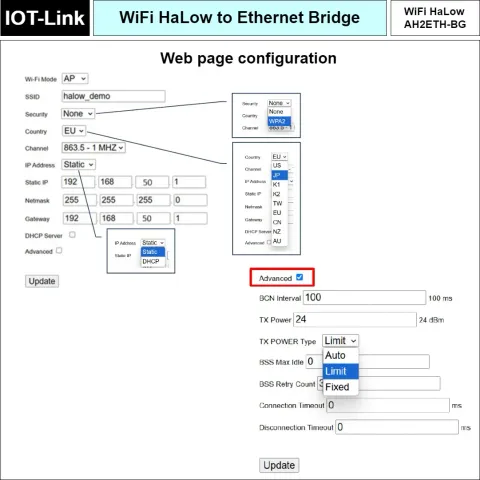

4. User Configuration: Webpage setting
5. Default: DHCP client, Support DHCP server
6. Default IP Address: 192.168.50.1

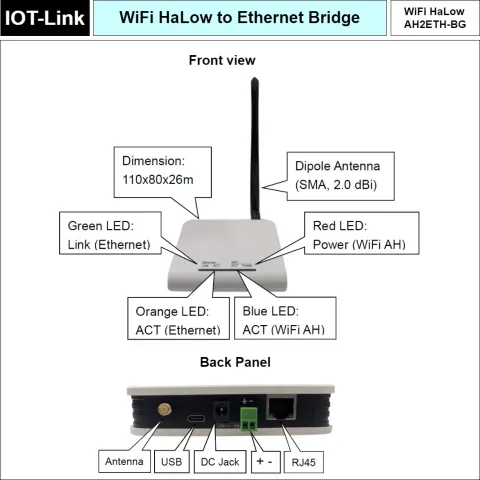

7. Dimensions: 110x80x26 mm
Remark: All contents are subject to change without notice.
